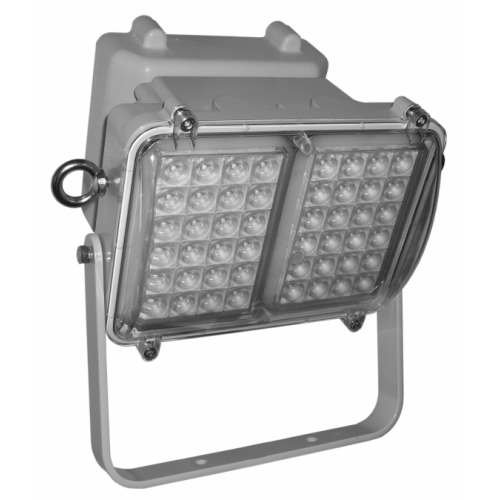

HDL206E - Emergency Modular LED Luminaire - Zone 2
Emergency backup power can provide 3 hours at 50% illumination or 90 minutes at full illumination. The HDL 106E features an integrated power supply, rugged construction and can be configures with an optional wire guard for extra protection.
Certification
- Certification: ATEX & ABS
- Protection: Ex II 3 G D Ex emb IIC T4 Gc, Ex tb IIIC T103oC Dc IP66/67
- Operating Temp: -20°C to +50°C
- Voltage: 110V to 240V AC
- Marine Grade Aluminium Body
- Polycarbonate Lens Cover
- Stainless Steel Painted Bracket
Key Features
- Battery backup power provides 3 hours at 50% illumination, 90 minutes at full illumination.
- Modular construction allows the modules to be supplied interlinked with each other to provide greater light output.
- Can be used as a single unit - small floodlight or bulkhead or linked together to replicate a large 250W/400W floodlight.
- Can be supplied in multiple configurations of standard or emergency modules.
- Each module utilises 48 off 1.2W LED's.
- Integrated power supply.
- Low power consumption.
- Rugged construction - resistant to vibration.
- Independently photometrically tested.
- All units supplied with 2 cable entries as standard. Additional entries available on request.
- IP66 and IP67.
- Optional wire guard available for extra protection.
- Narrow, Medium, Wide and Extra Wide beam light output available.
For more information please refer to our datasheet.
