Hadar Lighting

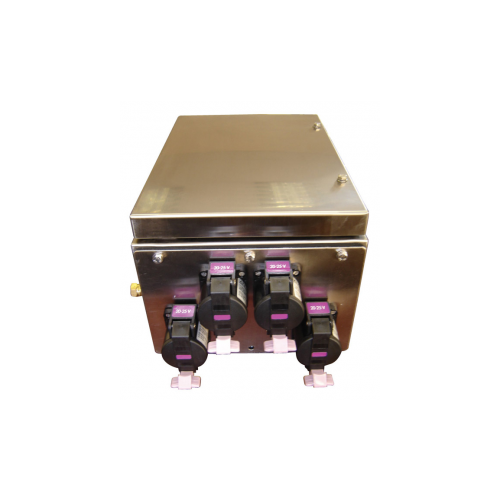

HDL105T - Ex ed Transformer
HDL105T - Ex ed Transformer

Used in conjunction with the HDL105 portable luminaires the HDL 105T transformer is primarily used for tank cleaning operations where output voltage limits have to be around the 24V - 48V range.


•Certification - II 2GD Ex ed IIC
•Protection - T4 Gas & Dust IP66
•Operating Temp. -20 to +40
•Voltage - 110V or 230V Input / 24V or 48V output
•A4 Stainless Steel Enclosure & Skid
•One Piece Polyurethane Gasket
•Hinged Removable Door with Captive Fasteners & Screws
•M10 Internal and external Brass Earth Stud Assemby M6 on the Door.

Download Product Sheet for full product specifications
