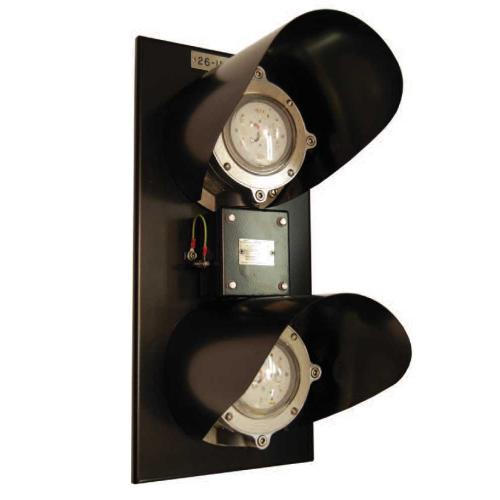

HDL153 - Ex emb LED Traffic Light IP66 / IP67 T5 Gas & Dust
HDL153 - Ex emb LED Traffic Light IP66 / IP67 T5 Gas & Dust

This unit can be set on installation for constant light output or flashing. The LED technology should give the unit 100,000 hours of life (10 yr).  Low output, Low maintenance.

Certification
  • Certification: ATEX & IECEx
  • Protection: Ex II 2 G D Ex emb IIC T5 Gb, Ex t IIIC T68oC Db IP66/67
  • Operating Temp: -20ºC to +55ºC
  • Voltage range: 110V to 254V AC or 24V AC/DC
  • Marine Grade Aluminium Lamp Body
  • Polycarbonate Lamp Lens
  • Silicone/Rubber Lamp Gaskets
  • A4 Stainless Steel External Fasteners
Key Features
  • Available in single, twin or triple lamp options.
  • Colour combinations can include:- Red, Amber, Green, White & Yellow.
  • Sunshields supplied as standard.
  • Horizontal or vertical mounting options available.
  • Direct Mount or Adjustable Pole Mount available.
  • Bespoke / Individual Lamp identification labelling available.
  • Customer can select constant light output or flashing upon installation.
  • LED technology will give a predicted working life of 10 years +.
  • Each individual lamp utilises 6 of 1.2W LEDS.
  • Low power consumption.
  • Easy installation and low maintenance.
  • Rugged construction - resistant to vibration.
  • Instant light output.
  • All units supplied with 2 cable entries.
  • IP66 and IP67
  • Optional wire guard available for extra protection.
  • Can be supplied with 10º / 30º / 50º LED lenses for directional light output.
  • Can be supplied in single unit  - HDL103

For more information please refer to our datasheet
